WS2812 RGBW LED Strip 5050 Addressable 4-in-1 DC5V

Apple Shopping Event

Hurry and get discounts up to 20% Read more

Driver IC WS2812B/SK6812
Working Time (hours): >30000h
Data Transfer 800Kbps
Voltage DC5V
Working Temperature(℃) -25℃~80℃
Working current 0.25A/pearl
Color 4 in 1 multi-color
Board bottom color White/Black
Luminous angle 120°
PCB thickness 200~400um
Grayscale level 256 Grayscale adjustable
RGB Sequence GRB

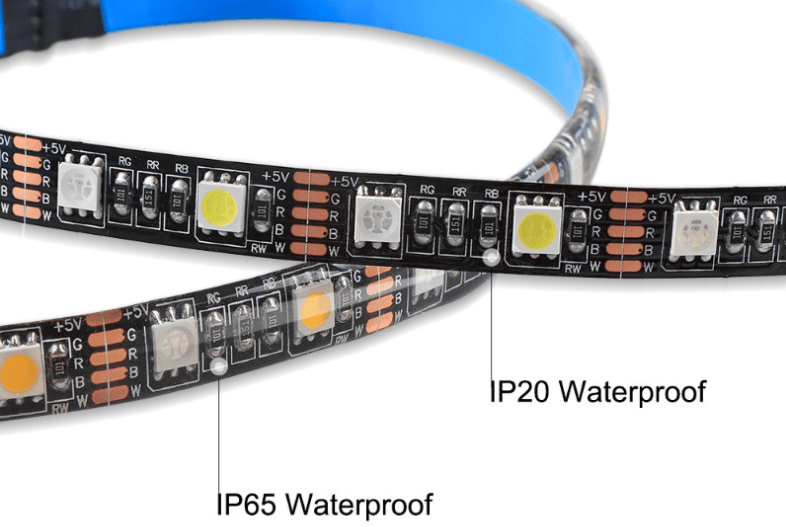

IP Rating IP20,IP65,IP67,IP68
PCB width 5mm,10mm,12mm
LED Quantity 30LED/M,60LED/M,144LED/M



Shipping and returns
Product care

Product details

Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.

Description

WS2812 RGBW LED strip is a type of LED strip that consists of red, green, blue, and white LEDs. It uses the WS2812B chip to control the color and brightness of each LED individually. This allows for dynamic color changing effects and precise control over the light output. The RGBW LED strip is ideal for applications where a range of colors are desired, as well as applications where white light is needed. It is commonly used in architectural lighting, stage lighting, and home automation systems.



1.High brightness
Choose high quality high brightness SMD 5050-W communication IC lamp beads, blue large chip + exclusive formulation of phosphor, packaged into four types: warm white (2500K), natural white (4500), positive white (5500K) and cold white (6500K) color temperature of pure white light beads.

2.Programmable
Through the single line zeroing code protocol, RGBW four channels are selected and programmed to design the mode of illumination + pure white light, presenting better effect of meteor, chase, water drops and running horse.

3.Easy to cut
Adopt soft FPCB as substrate, single lamp bead is a group of circuit, a lamp a capacitor 3pin line design, single point single control, more recognized by the market

4.Wide application
It is suitable for teaching model decoration, festival atmosphere lighting, audio and electrical light source transformation, shopping mall and supermarket facade decoration, KTV, stage bar lighting, unit building city lighting and other fields.
